Download Factsheet

DECANUS

Decanus allows for easy and cost-efficient management of your Primus HSM. By cryptographically pairing it with each HSM, full security is guaranteed. The remote control terminal enables you to manage up to 64 Primus HSMs at different locations anywhere in the world.


Overview

Decanus allows easy and cost-effective management of your HSMs without compromising security. The Remote Control Terminal allows you to manage up to 64 Primus HSMs in different locations worldwide - or it can manage only one partition on the Primus HSM without the need to turn on or trust the HSM administration.

EFFICIENT MANAGEMENT FROM YOUR DESK

Decanus connects securely to your HSM over the network (TCP/IP, AES 256). It offers the functionality of the Primus HSM front panel on a touch screen display. Most configuration, management and control tasks can be performed without visiting multiple data centers.

DECENTRALIZED PARTITION MANAGEMENT

Partition users can use Decanus to connect to and manage a partition without having to involve or trust the device administrator. This way an organization can meet the strictest security policies by allowing each business application and unit to fully control its secure keystore.

Download Solution Brief

SECURITY BY 2-FACTOR AUTHENTICATION WITH SMARTCARDS

Users of Primus HSM E-Series benefit with Decanus from the 2-factor authentication with smart- cards. The cryptologically secured initial pairing between Decanus and the managed HSMs enforces communication at the highest security level.

INTUITIVE TOUCHSCREEN

With an industrial quality touch screen, Decanus simplifies management and operational tasks.  It also allows you to monitor the overall status of your HSM.

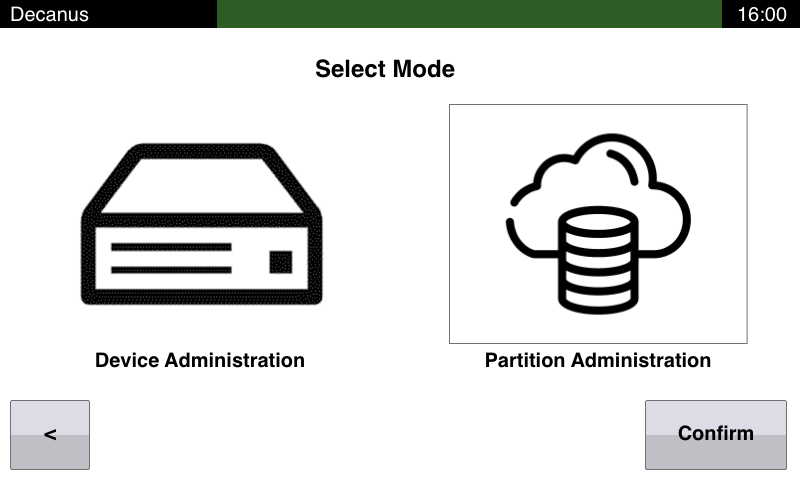

Decanus_device admin settings

Decanus Terminal Gallery

Business Advantage

The Decanus remote control terminal allows for efficient management of your HSM cluster without the need to visit datacenters all over the world. Reducing the number of trips to datacenters has a significant business impact. Operations that used to take half a day or more can you be completed in minutes remotely, without any loss in security.

  • Simple and secure management and control of Primus HSM and its partitions from your desk

  • Central management of your HSM cluster  - no need to visit data centers

  • Full decentralized administration control on individual partitions

  • Highest connection security

  • 2-factor authentication for Primus HSM E-Series and X-Series





Technical
specification

Power Supply

  • PoE: Class 4, 51V DC
  • Wall adaptor: 100 - 240V AC 60/50Hz, 12V DC

Input Power

  • DC PWR Input: 12V DC (9-14V DC)
  • Standby: <0.5W
  • On: max. 12W, typ. 4W

Touch Screen

  • WVGA: 800x480, 5"
  • Brightness: 800 cd/m2
  • Touch: PCAP

Status Indicator

  • Multicolor LED: RGB

Connectors

  • USB Host: Typ A, USB 2.0 HS
  • USB Device: Typ B, USB 2.0 HS
  • Ethernet: 100Base-TX

User Input

  • Touchscreen
  • on/off Button
  • Console: FTDI, Virtual COM port

Environmental Conditions

  • Operation: 0 ... +40°C non condensing
  • Storage: -20 ... +70°C non condensing

Security

  • Case: metal, with anti-tamper mechanisms
  • Tamper battery: Lithium Thionyl Chloride 0.65g Li, IEC 60086-4 ,UL 1642, 3.6V

Dimensions

  • 222 x 130 x 95mm (w x d x h)
